Type 类型

Unit

WS-M1512ASR001

Rated Impedance 额定阻抗

Ω

8±15%

32±15%

Rated (Max) Power 额定(最大)功率

W

0.5/1W

10mW/20mW

DISTORLION 失真率

less than 10% at 1KHz,10 mW

less than 5% at 1KHz,10 mW

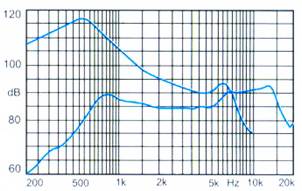

Frequency Range 频率范围

Hz

FO-10KHz

300-4000Hz

SENSITIVITY 灵敏度

dB

86±3dB SPL Input 0.1W/0.1M at(0.8,1.1.2,15KHz) avg

106±3dB SPL Input 100mV at 1KHz 0dB SPL=20 μ Pa

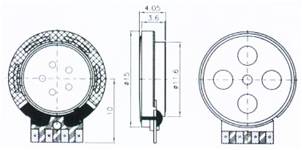

Size D*H 尺寸

mm

φ 15* φ 11.6*4.1

Cone Material振膜材料

Al plated Mylar

Frame Material 外壳材料

PLASTIC HOUSING
