Receiver WS-M10AR001

    • Receiver WS-M10AR001

Detailed Product Description

Picture:

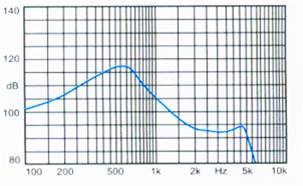

                                            Frequency Response Curve    tested by CRY

Specification





Type 类型

Unit

WS-M10AR001

Rated Impedance 额定阻抗

Ω

32±15%

Rated (Max) Power 额定(最大)功率

W

0.01(0.02 )

DISTORLION 失真率



lessthan5% at 1KHz,10mW

 SENSITIVITY 灵敏度

 dB

96±3dB SPL Input 100Mv at 1KHz 0dB SPL=20 μ Pa

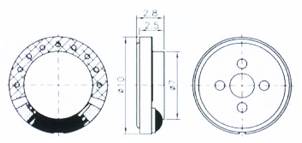

Size D*H 尺寸

mm

φ 10*2.8

Cone Material振膜材料



Al plated Mylar

Frame Material 外壳材料



PLASTIC HOUSING
