Receiver WSD-150P
- Receiver WSD-150P
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Picture:

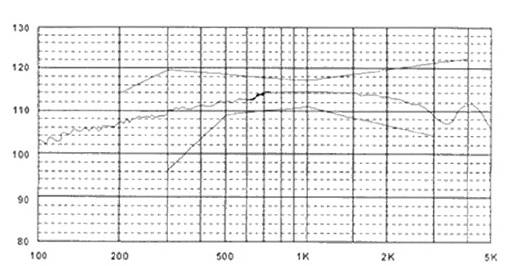

Frequency Response Curve tested by CRY
Specification
Type 类型 | Unit | WSD-150P |
DC Resistance | Ω | 140±15%Ω （NOMAL TEMP） |
AC | W | 150±20%Ω (1KHZ) |
THD |
| <1% at 1KHz 60mV |
SENSITIVITY | dB | 114dB (S.P.L380mA) |

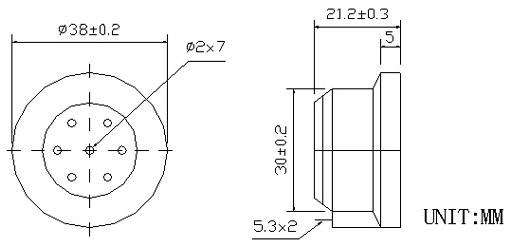

Size D*H | mm | φ 38*21 |
Cone Material |
| Al plated Mylar |
Frame Material |
| PLASTIC HOUSING |
