SMD Magnetic Transducer(External Drive Type) PMT-96H5.5

    • SMD Magnetic Transducer(External Drive Type) PMT-96H5.5

Detailed Product Description

Model No.: Electromagnetic buzzer                     Curve

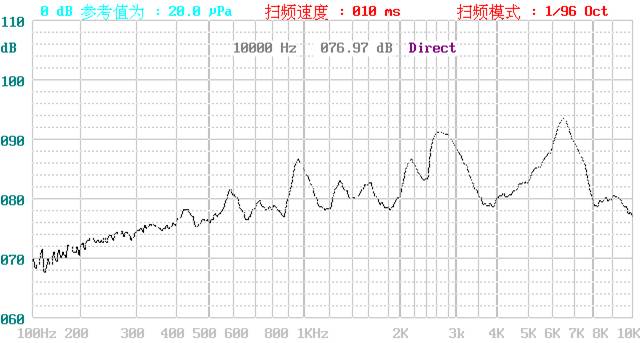

Picture:                                                                    Frequency Response Curve tested by B&k



Specification



Type

Unit

PMT-96H5.5-1

PMT-96H5.5-3

PMT-96H5.5-5

Rated Voltage

v

1.5

3.6

5

Operating Voltage

v

1~2

2.5~4.5

4~7

Rated Current(max)

mA

80

70

70

Sound output at 10cm

dB

80

85

85

Rate Frequency

Hz

2700

Coil Resistance

Ω

5.5±1

16±3

32±5

Operating temperature

-30~+70

Storage Temperature

-40~+85

Housing material

       LCP

weight

g

0.8

Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
