Micro Speaker WS-M1512AS001

    • Micro Speaker WS-M1512AS001

Detailed Product Description

Product Category:  MICRO SPEAKER                    Curve

Picture:

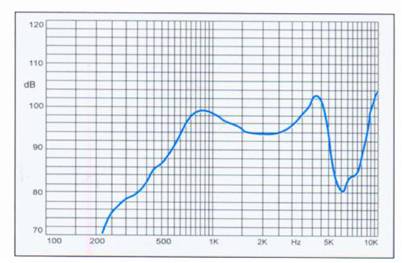

                                            Frequency Response Curve    tested by CRY

Specification

Type 类型

Unit

WS-M1512AS001

Rated Impedance 额定阻抗

Ω

8±15%

Rated (Max) Power 额定(最大)功率

W

0.5(0.8 )

Resonant Frequency谐振频率

Hz

850±20%

Frequency Range 频率范围

Hz

Fo~7KHz

Sound Pressure Level 声压级

dB

88±3 By CRY at  0.5w 0.1m

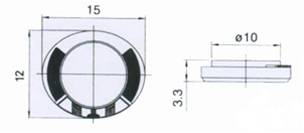

Size D*H 尺寸

mm

15.0*12.0*3.3

Cone Material振膜材料



Al plated Mylar

Frame Material 外壳材料



Metal













Back
