Micro Speaker WS-M13ES001

    • Micro Speaker WS-M13ES001

Detailed Product Description

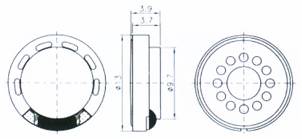

Product Category:  MICRO SPEAKER                    Curve

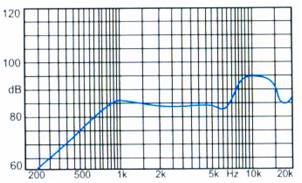

Picture:                                                                      Frequency Response Curve tested by CRY

Specification





Type 类型

Unit

WS-M13ES001

Rated Impedance 额定阻抗

Ω

8±15%

Rated (Max) Power 额定(最大)功率

W

0.5(0.7 )

Resonant Frequency谐振频率

Hz

1000±100

Frequency Range 频率范围

Hz

Fo~15KHz

Sound Pressure Level 声压级

dB

88±3 By CRY at  0.5w 0.1m

Size D*H 尺寸

mm

13*3.9

Cone Material振膜材料



Al plated Mylar

Frame Material 外壳材料



PLASTIC HOUSING
