Magnetic Transducer(Self Drive Type) sat-12sh9.5b
 sat-12sh9.5b_6215.jpg "Magnetic Transducer(Self Drive Type) sat-12sh9.5b")
- Magnetic Transducer(Self Drive Type) sat-12sh9.5b
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description

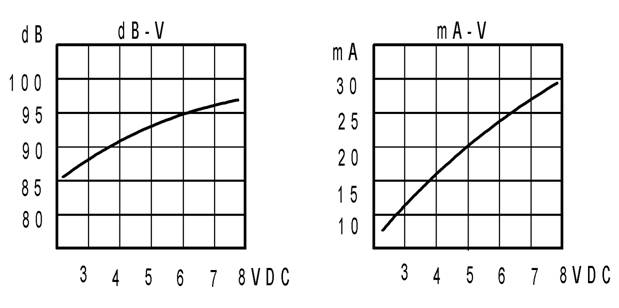

Product Category: Electromagnetic buzzer Curve
Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | SAT-1201SH9.5B | SAT-1206SH9.5B | SAT-1212SH9.5B |
| Rated Voltage 额定电压 | v | 1.5 | 6.0 | 12 |
| Operating Voltage 操作电压 | v | 1~2 | 4~8 | 8~16 |
| Rated Current(max) 额定电流 | mA | 25 | 25 | 25 |
| Sound output at 10cm 输出声压 | dB | 85 | 90 | 90 |
| Rate Frequency 额定频率 | Hz | 2400±300 | ||
| Coil Resistance 线圈电阻 | ℃ | -20~+70 | ||
| Operating temperature操作温度 | ℃ | -30~+80 | ||
| Storage Temperature 存储温度 | MPPO | |||
| Housing material 外壳材料 | g | 2.2 | ||
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
