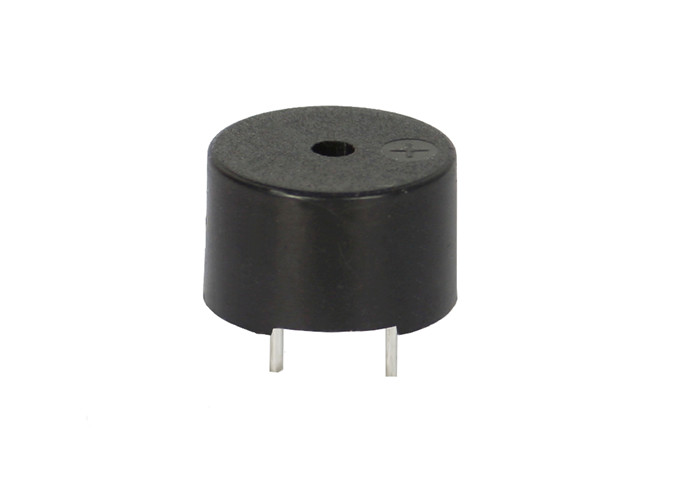

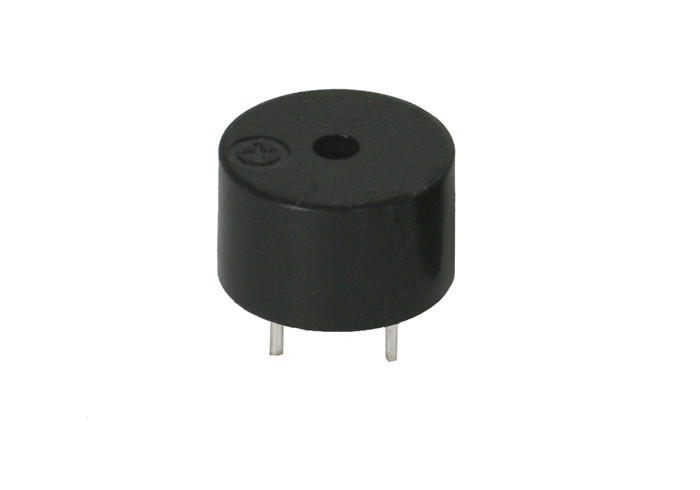

Magnetic Transducer(Self Drive Type) Pt-9050S

    • Magnetic Transducer(Self Drive Type) Pt-9050S

Detailed Product Description

Product Category:                                  Curve

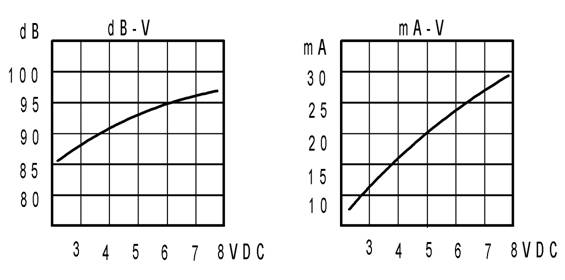

Picture:                                                     Frequency Response Curve tested by B&k

Specification



Type

Unit

PT-9050S-1

PT-9050S-3

PT-9050S-5

PT-9050S-12

Rated Voltage

v

1.5

3.6

5

12

Operating Voltage

v

1~2

2.5~4.5

4~7

8-14

Sound output at 10cm

dB

80

85

85

85

Rated Current(max)

mA

30

Rate Frequency

Hz

2400±300

Operating temperature

-20~+60

Storage Temperature

-30~+70

Housing material

MPPO

weight

g

0.6

Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
