Magnetic Transducer(Self Drive Type) sat-12sh7.5
 sat-12sh7.5_6214.jpg "Magnetic Transducer(Self Drive Type) sat-12sh7.5")
- Magnetic Transducer(Self Drive Type) sat-12sh7.5
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description

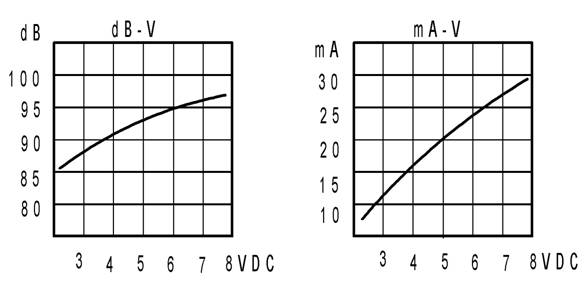

Product Category: Electromagnetic buzzer Curve
Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | SAT-1201SH7.5 | SAT-1205SH7.5 | SAT-1212SH7.5 |
| Rated Voltage 额定电压 | v | 1.5 | 5 | 12 |
| Operating Voltage 操作电压 | v | 1~3 | 4~8 | 9~15 |
| Rated Current(max) 额定电流 | mA | 30 | 30 | 30 |
| Sound output at 10cm 输出声压 | dB | 80 | 85 | 85 |
| Rate Frequency 额定频率 | Hz | 2300±500 | ||
| Operating temperature操作温度 | ℃ | -20~+70 | ||
| Storage Temperature 存储温度 | ℃ | -20~+70 | ||
| Housing material 外壳材料 | MPPO | |||
| Weight重量 | g | 2 | ||
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
