Magnetic Transducer(External Drive Type) sat-112P
 sat-112P_6207.jpg "Magnetic Transducer(External Drive Type) sat-112P")
- Magnetic Transducer(External Drive Type) sat-112P
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description

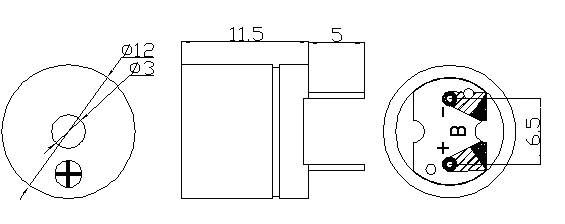

Model No.: Electromagnetic buzzer Curve

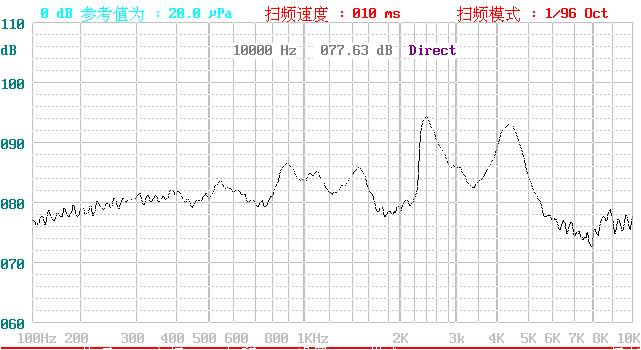

Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | SAT-112P-1 | SAT-112P-2 |
| Rated Voltage | v | 1.5 | 1.5 |
| Operating Voltage | v | 1~2 | 1~2 |
| Rated Current(max) | mA | 30 | 12 |
| Sound output at 10cm | dB | 85 | 85 |
| Rate Frequency | Hz | 2048 | 2048 |
| Coil Resistance | Ω | 15±3 | 50±7 |
| Operating temperature | ℃ | -20~+60 | |
| Storage Temperature | ℃ | -30~+70 | |
| Housing material | MPPO | ||
| weight | g | 1.2 | |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
