Magnetic Transducer(External Drive Type) PS-9027H4

    • Magnetic Transducer(External Drive Type) PS-9027H4

Detailed Product Description

Product Category: Electromagnetic buzzer        Curve

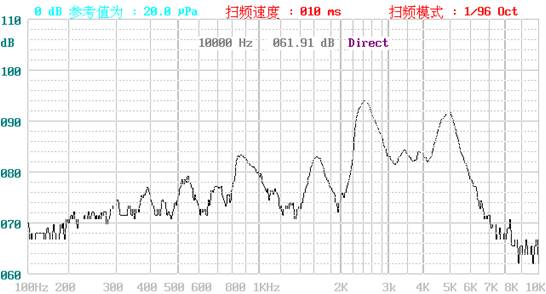

Picture:                                       Frequency Response Curve    tested by B&k

Specification



Type

Unit

PS-9027H4-1

PS-9027H4-3

PS-9027H4-5



Rated Voltage 额定电压

v

1.5

3.6

5



Operating Voltage 操作电压

v

1~2

2.5~4.5

4~7



Rated Current(max) 额定电流

mA

80

70

70



Sound output at 10cm 输出声压

dB

80

85

85



Rate Frequency 额定频率

Hz

2700

3100



Coil Resistance 线圈电阻

Ω

5.5±1

16±3

30±3



Operating temperature操作温度

-30~+70



Storage Temperature 存储温度

-40~+85



Housing material 外壳材料

       MPPO



Weight 重量

g

0.6



Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
