Magnetic Transducer(External Drive Type) SAT-25NP
 SAT-25NP_6206.jpg "Magnetic Transducer(External Drive Type) SAT-25NP")
- Magnetic Transducer(External Drive Type) SAT-25NP
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Electromagnetic buzzer Curve

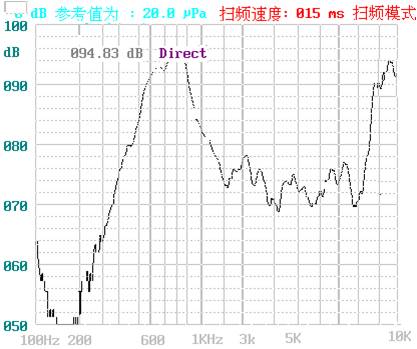

Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | SAT-2505NP | SAT-2506NP | SAT-2512NP |
| Rated Voltage 额定电压 | v | 4-7 | 5-8 | 10-14 |
| Operating Voltage 操作电压 | v | 5 | 6 | 12 |
| Rated Current(max) 额定电流 | mA | ≤40 | ≤40 | ≤50 |
| Sound output at 10cm 输出声压 | dB | 85 | 85 | 90 |
| Rate Frequency 额定频率 | Hz | 800 | 750 | 1000 |
| Coil Resistance 线圈电阻 | Ω | 33±5 | 30±5 | 120±10 |
| Operating temperature操作温度 | ℃ | -30～+70 | ||
| Storage Temperature 存储温度 | ℃ | -30～+80 | ||
| Housing material 外壳材料 | MPPO | |||
| Weight 重量 | G | 8.2 | ||
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
