Magnetic Transducer(External Drive Type) SAT-16NP
 SAT-16NP_6205.jpg "Magnetic Transducer(External Drive Type) SAT-16NP")
- Magnetic Transducer(External Drive Type) SAT-16NP
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Electromagnetic buzzer Curve

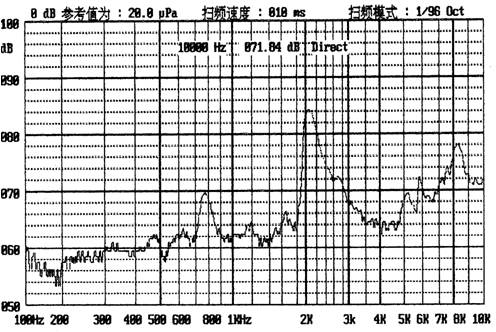

Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | SAT-1601NP | SAT-1606NP | SAT-1612NP |
| Rated Voltage 额定电压 | v | 1.5 | 6.0 | 12 |
| Operating Voltage 操作电压 | v | 1~2 | 4~8 | 8~15 |
| Rated Current(max) 额定电流 | mA | 30 | 40 | 40 |
| Sound output at 10cm 输出声压 | dB | 80 | 85 | 85 |
| Rate Frequency 额定频率 | Hz | 2048 | ||
| Coil Resistance 线圈电阻 | Ω | 16±3 | 50±5 | 140±10 |
| Operating temperature操作温度 | ℃ | -20~+70 | ||
| Storage Temperature 存储温度 | ℃ | -30~+80 | ||
| Housing material 外壳材料 | PBT | |||
| Weight 重量 | g | 2.8 | ||
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
