Magnetic Transducer(External Drive Type) SAT-12060
 SAT-12060_6209.jpg "Magnetic Transducer(External Drive Type) SAT-12060")
- Magnetic Transducer(External Drive Type) SAT-12060
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Electromagnetic buzzer Curve

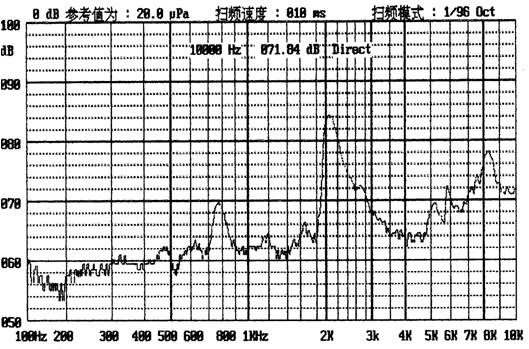

Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | SAT-12060 |
| Rated Voltage 额定电压 | v | 1.5 |
| Operating Voltage 操作电压 | v | 1~2 |
| Rated Current(max) 额定电流 | mA | 30 |
| Sound output at 10cm 输出声压 | dB | 85 |
| Rate Frequency 额定频率 | Hz | 2048 |
| Coil Resistance 线圈电阻 | Ω | 16±3 |
| Operating temperature操作温度 | ℃ | -20~+60 |
| Storage Temperature 存储温度 | ℃ | -30~+70 |
| Housing material 外壳材料 |
| |
| Weight 重量 | g | 1.2 |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
