Loudspeaker(round) WSYD58-1
 WSYD58-1_6286.jpg "Loudspeaker(round) WSYD58-1")
- Loudspeaker(round) WSYD58-1
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: SPEAKER Curve
Picture:

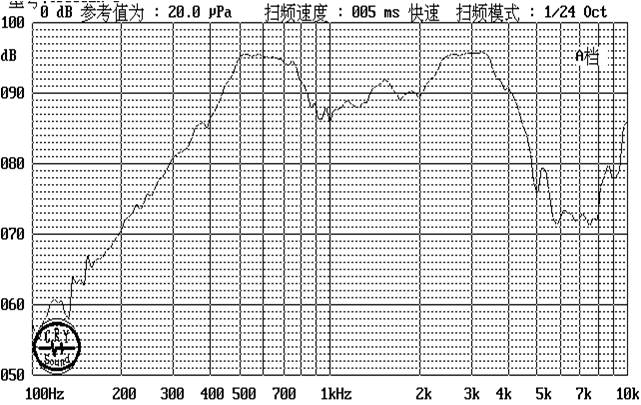

Frequency Response Curve tested by CRY
Specification
| Type 类型 | Unit | WSYD58-1 |
| Rated Impedance 额定阻抗 | Ω | 8±15% |
| Rated (Max) Power 额定(最大)功率 | W | 0.25(0.5) |
| Resonant Frequency谐振频率 | Hz | 450±20% |
| Frequency Range 频率范围 | Hz | Fo-10000 |
| Sound Pressure Level 声压级 | dB | 87±3 By CRY at 0.25w 1m |
| Size D*H 尺寸 | mm | 57*18.2 |
| Cone Material振膜材料 |
| Al plated Mylar |
| Frame Material 外壳材料 |
| Metal |
