Loudspeaker(round) WS-S2308
 WS-S2308_6273.jpg "Loudspeaker(round) WS-S2308")
- Loudspeaker(round) WS-S2308
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: SPEAKER Curve

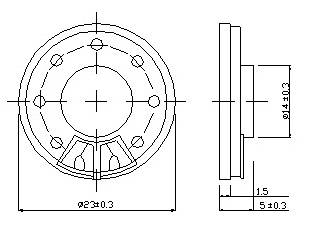

Picture:

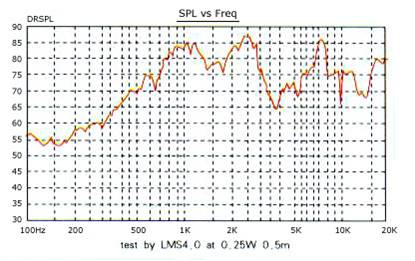

Frequency Response Curve tested by LMS
Specification
| Type 类型 | Unit | WS-S2308 |
| Rated Impedance 额定阻抗 | Ω | 8±15% |
| Rated (Max) Power 额定(最大)功率 | W | 0.2(0.4 ) |
| Resonant Frequency谐振频率 | Hz | 700±20% |
| Frequency Range 频率范围 | Hz | Fo-10000 |
| Sound Pressure Level 声压级 | dB | 80±3 By LMS at 0.2w 0.5m |
| Size D*H 尺寸 | mm | 23*5.0 |
| Cone Material振膜材料 |
| Transparent Mylar |
| Frame Material 外壳材料 |
| Metal |
