Loudspeaker(round) WS-S3608
 WS-S3608_6276.jpg "Loudspeaker(round) WS-S3608")
- Loudspeaker(round) WS-S3608
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: SPEAKER Curve

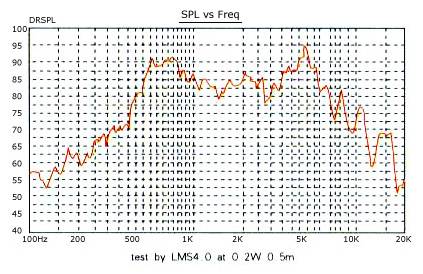

Picture: Frequency Response Curve tested by LMS
Specification
| Type 类型 | Unit | WS-S3608 |
| Rated Impedance 额定阻抗 | Ω | 8±15% |
| Rated (Max) Power 额定(最大)功率 | W | 02(0.4 ) |
| Resonant Frequency谐振频率 | Hz | 500±20% |
| Frequency Range 频率范围 | Hz | Fo-3500 |
| Sound Pressure Level 声压级 | dB | 85±3 By LMS at 0.2w 0.5m |

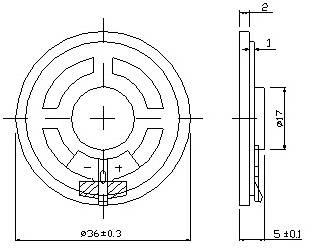

| Size D*H 尺寸 | mm | 36*5.0 |
| Cone Material振膜材料 |
| Transparent Mylar |
| Frame Material 外壳材料 |
| Metal |
