SMD Piezo Buzzer(External Drive Type) pmt-1030-LF

    • SMD Piezo Buzzer(External Drive Type) pmt-1030-LF

Detailed Product Description

Product Category:  Piezo Transduce                                Curve

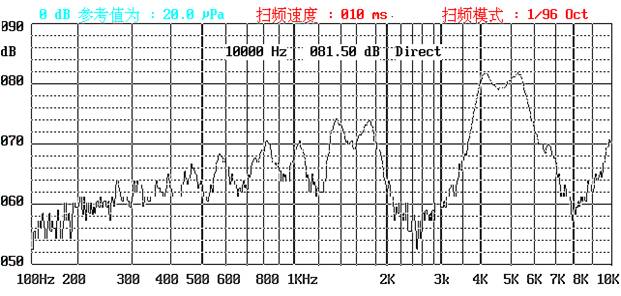

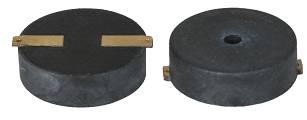

Picture:                                                                          Frequency Response Curve    tested by B&k

Specification



Type

Unit

PMT-1030-LF

Operating Voltage操作电压

v

Max 30Vp-p

Rated Current(max) 额定电流

mA

2mA (Max)

Sound output at 10cm输出声压

dB

Min 80dB(Typ.)at 5Vp-p,4.5 khz

Rate Frequency 额定频率

Hz

4500±500

Capacitance 电容

pF

15000±30%

Operating temperature操作温度

-20~+70

Storage Temperature 储藏温度

-30~+80

Weight 重量

g

0.5

Housing material 外壳材质

LCP

Packing Condition 包装情况

1000PCS/REEL,  10000PCS/BOX

Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

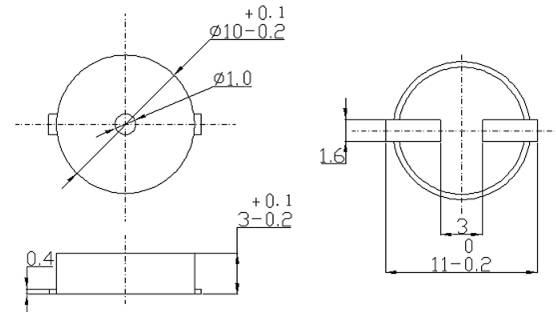

Dimension(Unit: mm)  Tolerance: ±0.2mm
