Mechanical Buzzer sat-3316srl

    • Mechanical Buzzer sat-3316srl

Detailed Product Description

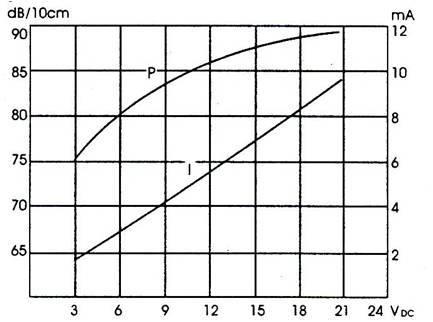

Product Category: Piezo Transducer                  Curve

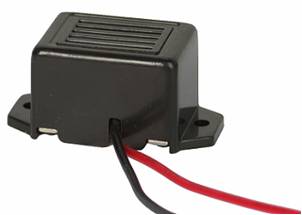

Picture:

Specification



Type

Unit

SAT-3316SRL-01

SAT-3316SRL-03

SAT-3316SRL-06

SAT-3316SRL-12

SAT-3316SRL-12

SAT-3316SRL-24

Rated Voltage

额定电压

VDC

1.5

3.0

6.0

12

12

24

Operating Voltage

操作电压

VDC

1.2~3

2~4

4-8

9-15

9-15

15-27

Rated Current(max)

额定电流

mA

20

25

25

25

25

30

Sound output at 10cm

输出声压

dB

70

70

75

75

75

75

Rate Frequency

额定频率

Hz

400±100

Operating temperature

操作温度

-20~+60

Storage Temperature

储藏温度

-30~+70

Housing material

外壳材质

ABS

Weight重量

g

10



Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

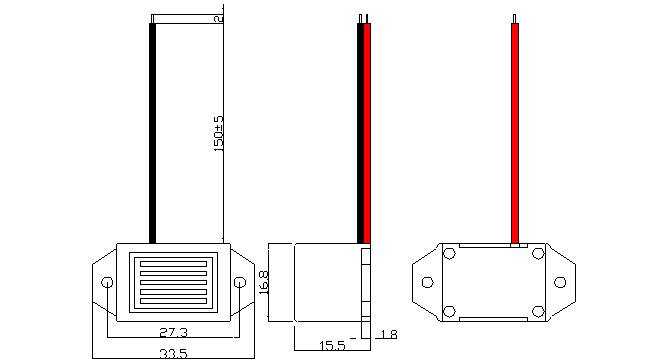

Dimension(Unit: mm)  Tolerance: ±0.2mm
