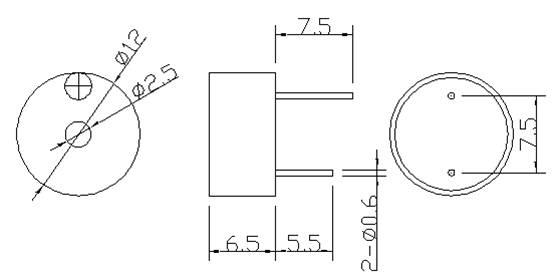

Magnetic Transducer(Self Drive Type) sat-12sh6.5
 sat-12sh6.5_6213.jpg "Magnetic Transducer(Self Drive Type) sat-12sh6.5")
- Magnetic Transducer(Self Drive Type) sat-12sh6.5
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Magnetic Buzzer(Self Drive Type) Curve

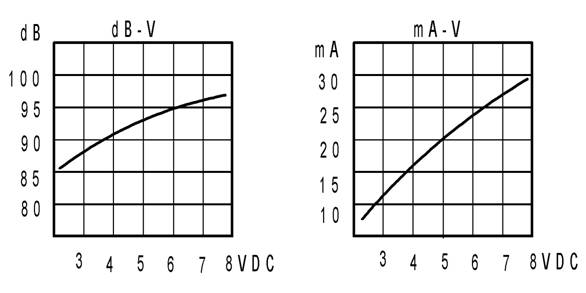

Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | SAT-1201SH6.5 | SAT-1205SH6.5 | SAT-1212SH6.5 |
| Rated Voltage 额定电压 | v | 1.5 | 5.0 | 12 |
| Operating Voltage 操作电压 | v | 1~2 | 4~6 | 10~14 |
| Rated Current(max) 额定电流 | mA | 30 | 30 | 30 |
| Sound output at 10cm 输出声压 | dB | 80 | 85 | 85 |
| Rate Frequency 额定频率 | Hz | 2400±300 | ||
| Operating temperature操作温度 | ℃ | -30~+70 | ||
| Storage Temperature 存储温度 | ℃ | -40~+85 | ||
| Housing material 外壳材料 | MPPO | |||
| Weight 重量 | g | 1.8 | ||
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
