Magnetic Transducer(External Drive Type) PS-9627H6.2

    • Magnetic Transducer(External Drive Type) PS-9627H6.2

Detailed Product Description

Product Category: Electromagnetic buzzer              Curve

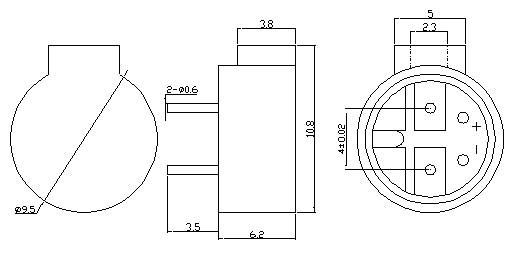

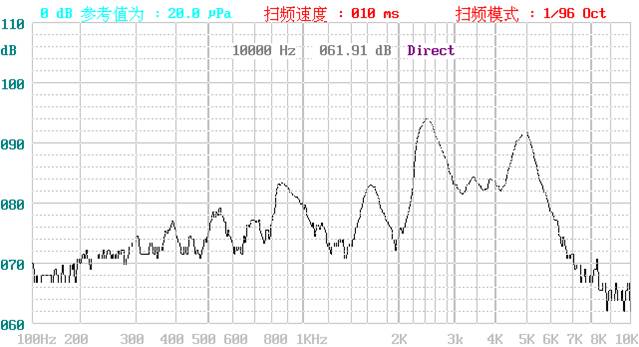

Picture:                                             Frequency Response Curve    tested by B&k

Specification



Type

Unit

PS-9627H6.2-1

PS-9627H6.2-3

PS-9027H6.2-5



Rated Voltage 额定电压

v

1.5

3.6

5



Operating Voltage 操作电压

v

1~2

2.5~4.5

4~7



Rated Current(max) 额定电流

mA

80

70

70



Sound output at 10cm 输出声压

dB

80

85

85



Rate Frequency 额定频率

Hz

2700



Coil Resistance 线圈电阻

Ω

5.5±1

16±3

30±5



Operating temperature操作温度

-30~+70



Storage Temperature 存储温度

-40~+85



Housing material 外壳材料

       PBT



Weight 重量

g

0.8

Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
