Receiver WSD150BP

Have already visited: 10205/22/2013



Product Category:  MICRO SPEAKER                    Curve

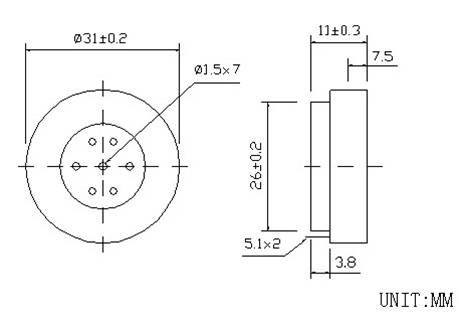

Picture:

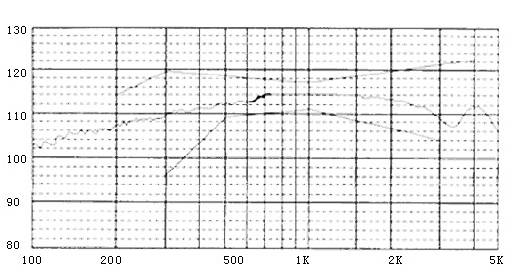

                                            Frequency Response Curve    tested by CRY

Specification





Type 类型

Unit

WSD-150BP

DC Resistance

Ω

140±15%Ω (NOMAL TEMP)

AC

W

150±20%Ω (1KHZ)

THD



<1% at 1KHz 60mV

SENSITIVITY

 dB

112±2dB (S.P.L380mA)

Size D*H

mm

φ 31*11

Cone Material



Al plated Mylar

Frame Material



PLASTIC HOUSING
