SMD Piezo Buzzer(External Drive Type) pmt-1414H7.5
 pmt-1414H7.5_6245.jpg "SMD Piezo Buzzer(External Drive Type) pmt-1414H7.5")
- SMD Piezo Buzzer(External Drive Type) pmt-1414H7.5
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Piezo Transducer Curve

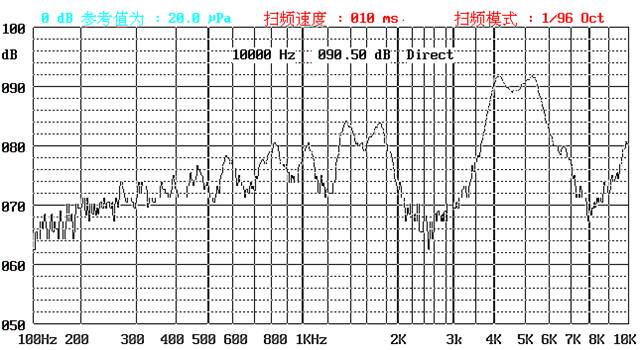

Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | PMT-1414H7.5-LF |
| Operating Voltage操作电压 | v | Max 20Vp-p |
| Rated Current(max) 额定电流 | mA | 3mA （Max） |
| Sound output at 10cm输出声压 | dB | Min 80dB（Typ.）at 5Vp-p,4 khz |
| Rate Frequency 额定频率 | Hz | 4000 |
| Capacitance 电容 | pF | 15000±30％ |
| Operating temperature操作温度 | ℃ | -40~+80 |
| Storage Temperature 储藏温度 | ℃ | -40~+85 |
| Weight 重量 | g | 2.0 |
| Housing material 外壳材质 | LCP | |
| Packing Condition 包装情况 | 350pcs/reel | |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

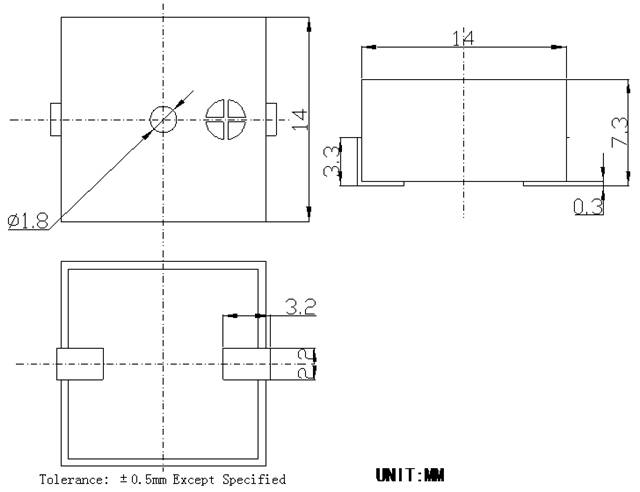

Dimension(Unit: mm)
