SMD Piezo Buzzer(External Drive Type) PMT-1465-LF

    • SMD Piezo Buzzer(External Drive Type) PMT-1465-LF

Detailed Product Description

Product Category:  Piezo Transducer            Curve

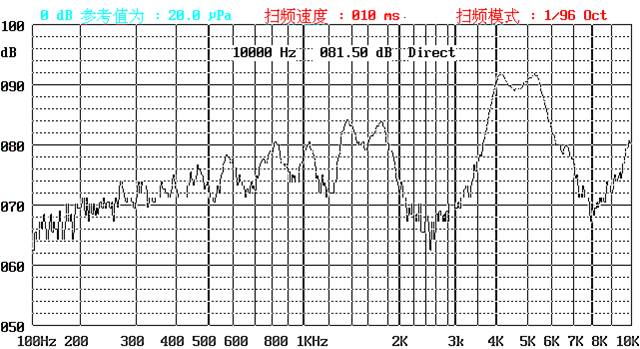

Picture:                                    Frequency Response Curve    tested by B&k



Specification



Type

Unit

PMT-1465-LF

Operating Voltage操作电压

v

Max 20Vp-p

Rated Current(max) 额定电流

mA

3mA (Max)

Sound output at 10cm输出声压

dB

Min 85dB(Typ.)at 5Vp-p,4 khz

Rate Frequency 额定频率

Hz

4000

Capacitance 电容

pF

15000±30%

Operating temperature操作温度

-20~+60

Storage Temperature 储藏温度

-30~+70

Weight 重量

g

0.5

Housing material 外壳材质

PPS

Packing Condition 包装情况

500PCS/REEL,  5000PCS/BOX

Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

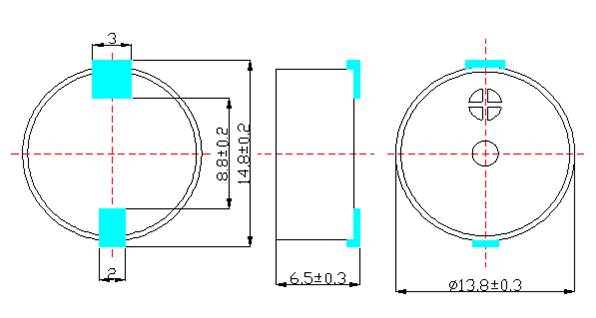

Dimension(Unit: mm)  Tolerance: ±0.2mm
