SMD Magnetic Transducer(Self Drive Type) PMT-1324SH6.5

    • SMD Magnetic Transducer(Self Drive Type) PMT-1324SH6.5

Detailed Product Description

Product Category:  Magnetic Buzzer(Self Drive Type)

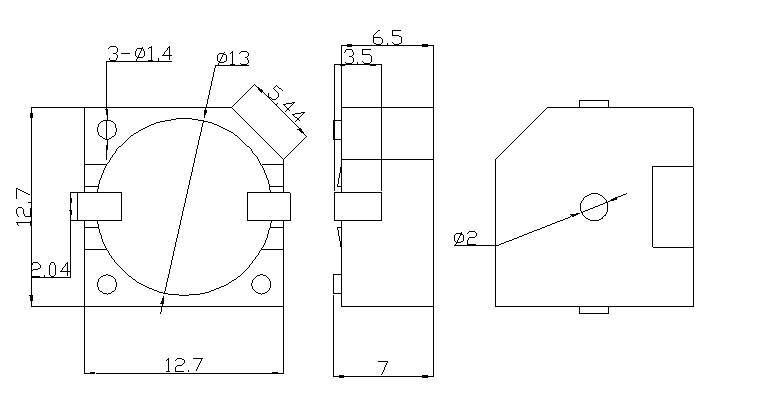

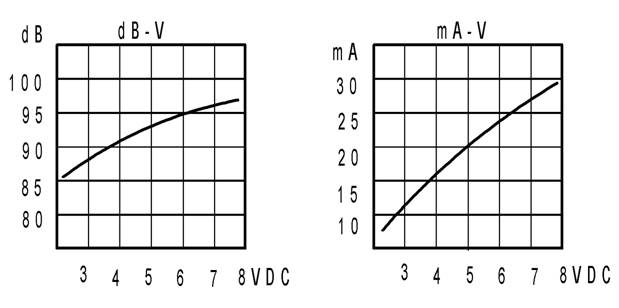

 Picture:                                                       Curve

Specification



Type

Unit

PMT-1324SH6.5-1

PMT-1324SH6.5-05

PMT-1324SH6.5-12



Rated Voltage 额定电压

v

1.5

5.0

12



Operating Voltage 操作电压

v

1~2

4~6

10~14



Rated Current(max) 额定电流

mA

30

30

30



Sound output at 10cm 输出声压

dB

80

85

85



Rate Frequency 额定频率

Hz

2400±300



Operating temperature操作温度

-30~+70



Storage Temperature 存储温度

-40~+85



Housing material 外壳材料

       PPS



Weight 重量

g

2.2

Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
