Piezo Buzzer(Self Drive Type) pp-1412SH7.5
 pp-1412SH7.5_6168.jpg "Piezo Buzzer(Self Drive Type) pp-1412SH7.5")
- Piezo Buzzer(Self Drive Type) pp-1412SH7.5
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Piezo Buzzer Curve

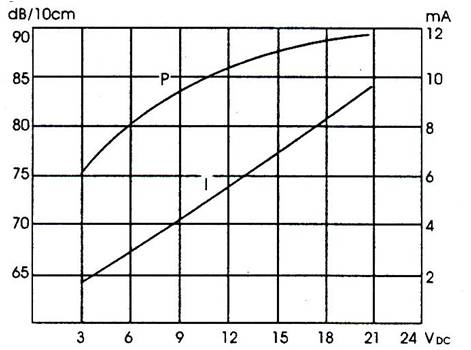

Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | SPK-12V-1C |
| Operating Voltage操作电压 | v | Max 25Vp-p |
| Rated Current(max) 额定电流 | mA | 7mA （Max） |
| Sound output at 10cm输出声压 | dB | Min 85dB（Typ.）at 12V |
| Rate Frequency 额定频率 | Hz | 4000±500 |
| Operating temperature操作温度 | ℃ | -20~+60 |
| Storage Temperature 储藏温度 | ℃ | -30~+70 |
| Weight 重量 | g | 0.5 |
| Housing material 外壳材质 | Mppo | |
| Packing Condition 包装情况 | 5000pcs/box | |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

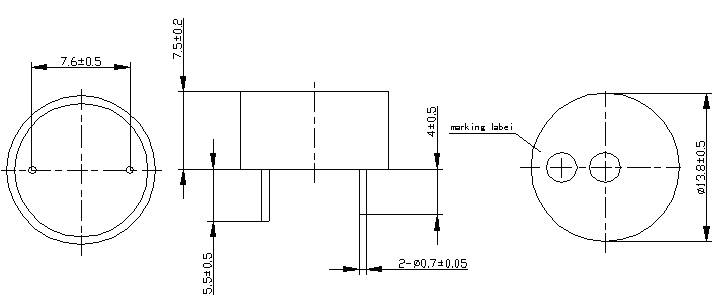

Dimension( Unit:mm) Tolerance: ±0.2mm
