Piezo Buzzer(Self Drive Type) PP-2417S

    • Piezo Buzzer(Self Drive Type) PP-2417S

Detailed Product Description

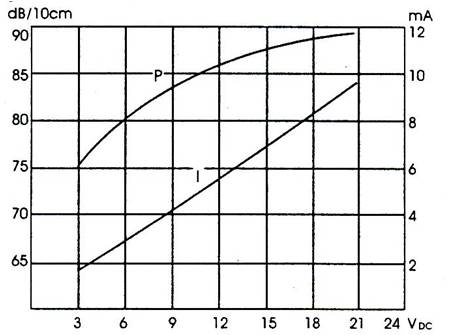

Product Category: Piezo Transducer                  Curve

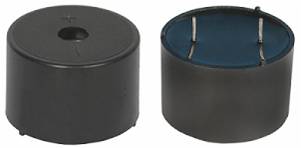

Picture:

Specification



Type

Unit

PP-2417S

Operating Voltage 操作电压

VDC

3-25Vp-p

Rated Voltage额定电压

VDC

12

Rated Current(max) 额定电流

mA

15mA (Max)at Rated Voltage

Sound output at 10cm输出声压

dB

Min 90dB(Typ.)at 30mA 12Vp-p, 3.5±0.5khz

Rate Frequency 额定频率

Hz

3500±500

Operating temperature 操作温度

-20~+60

Storage Temperature 储藏温度

-30~+80

Housing material 外壳材质

PBT

Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

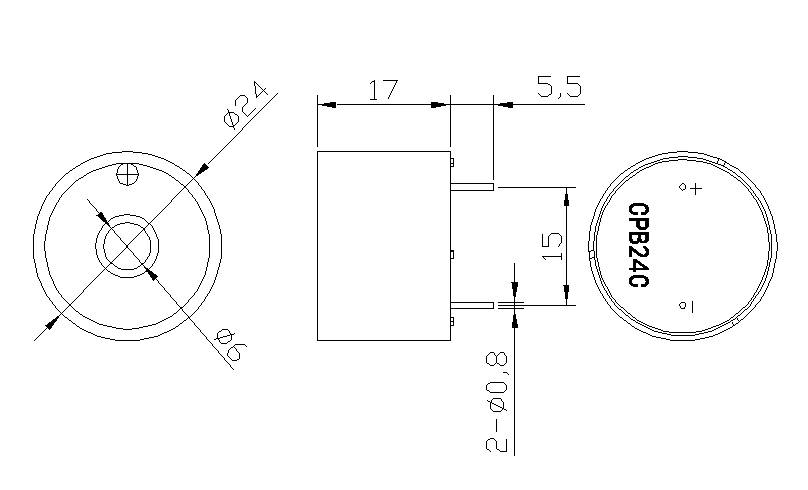

Dimension(Unit: mm)  Tolerance: ±0.2mm
