Detailed Product Description
Specification
| Type | Unit | PP-16L |
| Operating Voltage操作电压 | v | Max 25Vp-p |
| Rated Current(max) 额定电流 | mA | 3mA （Max） |

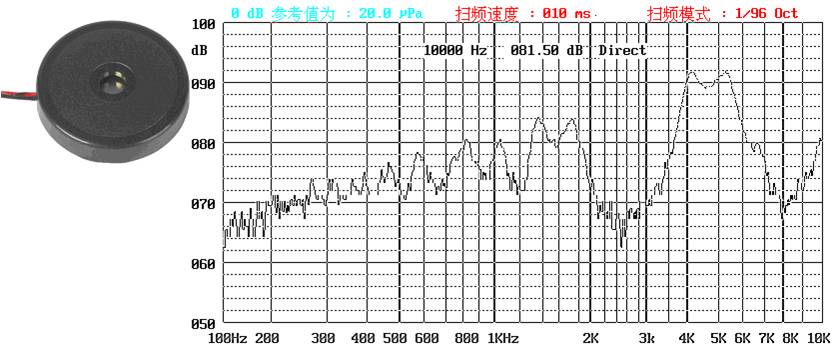

| Sound output at 10cm输出声压 | dB | Min 80dB（Typ.）at 5Vp-p,4 khz |
| Rate Frequency 额定频率 | Hz | 4000 |
| Capacitance 电容 | pF | 15000±30％ |
| Operating temperature操作温度 | ℃ | -20~+60 |
| Storage Temperature 储藏温度 | ℃ | -30~+70 |
| Weight 重量 | g | 0.5 |
| Housing material 外壳材质 | ABS | |
| Packing Condition 包装情况 | 3000pcs/box | |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

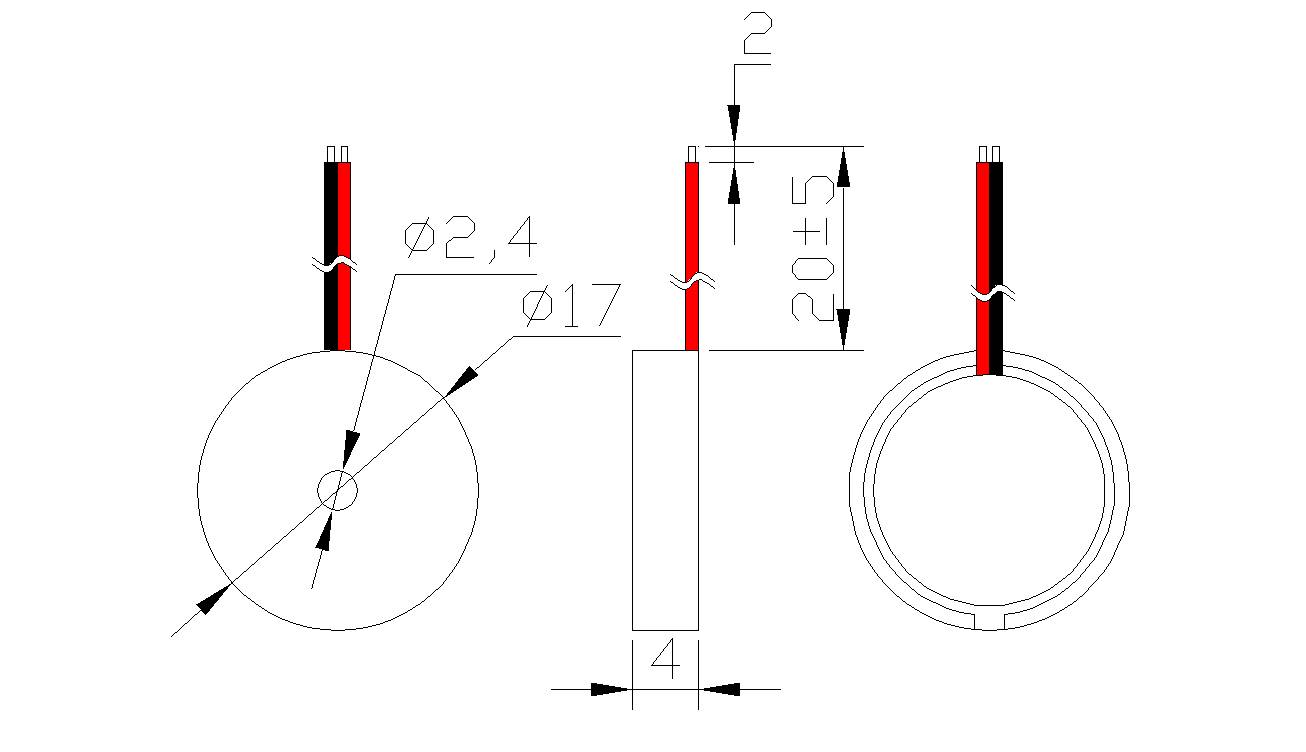

Dimension(Unit: mm) Tolerance: ±0.2mm
