Piezo Buzzer(External Drive Type) pp-1640H6.8

    • Piezo Buzzer(External Drive Type) pp-1640H6.8
    • Piezo Buzzer(External Drive Type) pp-1640H6.8

Detailed Product Description

Specification



Type

Unit

PP-1640H6.8

Operating Voltage操作电压

v

Max 25Vp-p

Rated Current(max) 额定电流

mA

3mA (Max)

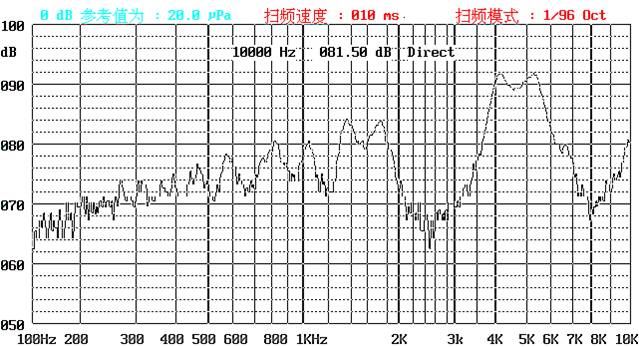

Sound output at 10cm输出声压

dB

Min 80dB(Typ.)at 5Vp-p,4 khz

Rate Frequency 额定频率

Hz

4000

Capacitance 电容

pF

15000±30%

Operating temperature操作温度

-20~+60

Storage Temperature 储藏温度

-30~+70

Weight 重量

g

0.5

Housing material 外壳材质

Mppo

Packing Condition 包装情况

3000pcs/box



Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

Dimension(Unit: mm)  Tolerance: ±0.2mm
