Piezo Buzzer(External Drive Type) pp-1440H7.0

    • Piezo Buzzer(External Drive Type) pp-1440H7.0
    • Piezo Buzzer(External Drive Type) pp-1440H7.0

Detailed Product Description

Specification



Type

Unit

PP-1440H7

Operating Voltage操作电压

v

Max 20Vp-p

Rated Current(max) 额定电流

mA

3mA (Max)

Sound output at 10cm输出声压

dB

Min 85dB(Typ.)at 12Vp-p,4 khz

Rate Frequency 额定频率

Hz

4000

Capacitance 电容

pF

18000±30%

Operating temperature操作温度

-20~+60

Storage Temperature 储藏温度

-30~+70

Weight 重量

g

0.5

Housing material 外壳材质

Mppo

Packing Condition 包装情况

5000pcs/box

Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

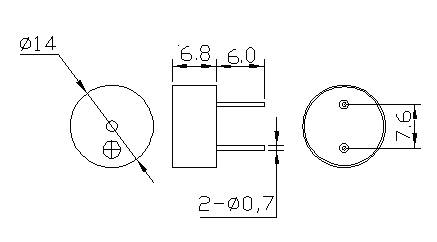

Dimension(Unit: mm)  Tolerance: ±0.2mm
